Industrial Boilers And Heat Recovery Steam Generators 50kg/H 36kw High Pressure

Brand Name : Enligy

Place of Origin : Guangdong, China

Price : $829.00/Sets 1-99 Sets

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service : Video technical support, Online support, Spare parts

Local Service Location : Kyrgyzstan

Type : Natural Circulation

Usage : Industrial

Structure : Fire Tube

Pressure : High Pressure

Dimension(L*W*H) : 750*520*1050 mm

Weight : 80 kg

Key Selling Points : Energy saving

Product name : Vertical electric superheated steam boiler generator

Keywords : superheated steam generator

Design fuel : Electricity

Steam Capacity : 50kg/H

Thermal efficiency : 98%

Rated working pressure : 0.4Mpa(4bar)

Material : Special Boiler Steel Plate

Steam temperature : 151 Degree

Voltage : 380V/50Hz

Contact Now

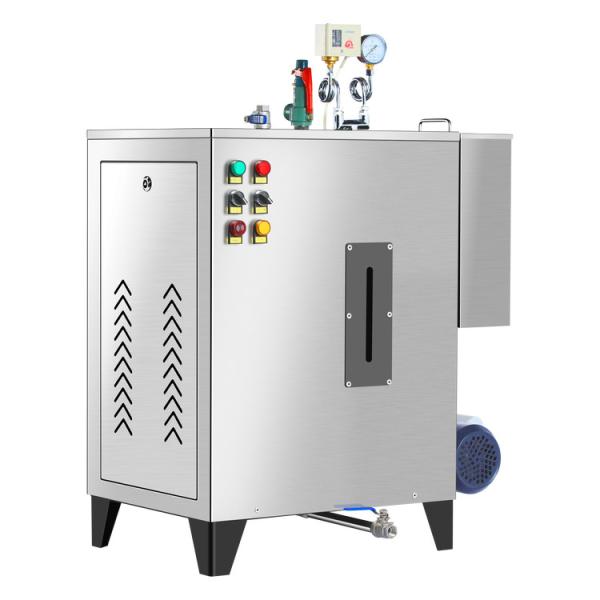

Electric Superheated Steam Boiler Generator 50kg/H 36 Kw High Pressure

Vertical electric superheated steam boiler generator steamer for food textile laundry cleaning washing industry 50 kg/h
1. Elesteam brand steam generator has nearly 100% thermal efficiency with original energy conservation system, reducing heat loss, saving electricity more than 15% .
2. The smart mini electric steam boiler with steam capacity 65kg/h are smart fully automatic operated with accurate computerized circuit board.
3. Safer than ever with 6 protection systems: pressure regulator system, Overpressure automatic protection, water lack protection, dry-fire protection, problem alarm system, overheat system.
4. Almost instant steam within 5 minutes
.The electric steam boiler adopts high quality electrical heated tube which heats the water rapidly . It uses stainless steel material with high compression strength, the working life is 5~10 times longer than common tubes.
5. Easy to install and assemble
What you need to do is only connecting the steam generator to your device with a pipe which can output the steam .

Power
36 kw
Evaporation
50 kg/h
Voltage
380 V
Pressure
0.4 Mpa
Steam temperature
151 ℃
Current
60 A
Weight
80 kg
Dimension
700*460*1050 mm (L*W*H)

Detailed Images
Industrial Boilers And Heat Recovery Steam Generators 50kg/H 36kw High Pressure
Industrial Boilers And Heat Recovery Steam Generators 50kg/H 36kw High Pressure

Industrial Boilers And Heat Recovery Steam Generators 50kg/H 36kw High Pressure


Widely Used & Multifunction
Industrial Boilers And Heat Recovery Steam Generators 50kg/H 36kw High Pressure
Making electricity from steam is generally a three step process, where water is converted to high pressure steam, then the high pressure steam is converted to mechanical rotation of a turbine shaft, and the rotating turbine shaft then drives an electric generator.
