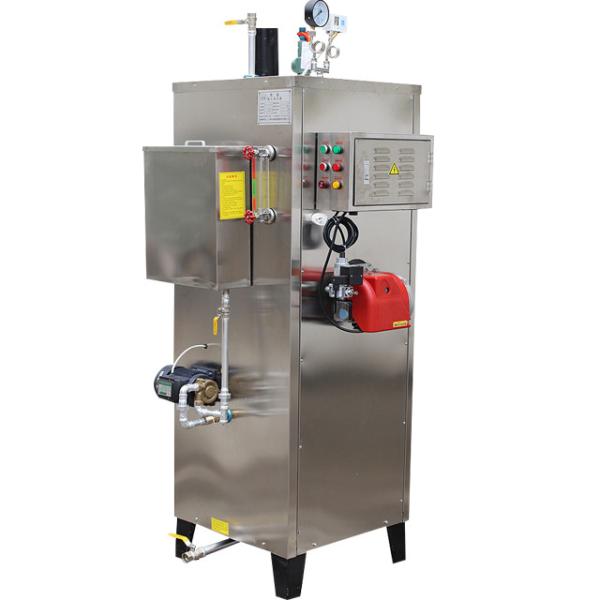

0.7mpa Fire Tube High Efficiency Gas Steam Boiler Generator energy saving

Product Categories
Energy Smart Technology(Dong Guan) Co., Ltd.
Contact Now

0.7mpa Fire Tube High Efficiency Gas Steam Boiler Generator energy saving

Place of Origin : China

Brand Name : Enligy

Price : $6,599.00/Sets 1-99 Sets

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company

After Warranty Service : Video technical support, Online support, Spare parts

Local Service Location : Kyrgyzstan

Showroom Location : Kyrgyzstan

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Enligy

Condition : New, New

Type : Natural Circulation

Usage : Industrial

Structure : Fire Tube

Pressure : High Pressure

Style : VERTICAL

Fuel : Gas, diesel

Output : Steam

Dimension(L*W*H) : 1100X1100X2300 mm

Weight : 850KG

Warranty : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Key Selling Points : High Safety Level, Energy Saving,Hing Thermal efficiency

Product name : wall mounted gas steam boiler

Design fuel : LPG, Gas,oil, Liquefied Gas,Propane

Keywords : gas powered generator

Material : Special Boiler Steel Plate

Rated steam capacity : 200 kg/h

Thermal efficiency : 94%

Steam temperature : 171

Working pressure : 0.7mpa 7bar

Voltage : 220v/380v/customized

Boiler Structure : Gas Oil Steam Container Boiler

Contact Now

0.7mpa Fire Tube High Efficiency Gas Steam Boiler Generator Energy Saving

Gas Steam Generator Mexico Estonia Congo Philippines Georgia Lebanon America Chile Australia Hungary 200kg/H Diesel Lpg
Brief Introduction
Oven and cistern of electric-heating steam-generator, brass stainless-steel leaf for supplying water make pump pressure of high pressue strong, noise low, through oven and cistern automatically to control water level and supply water. Steam pressure is controlled during 0.25-1.05Mpa, and installs insurance safety-valve, make installation and use convenient,power,water is put through. After 15 minutes, will supply 0.7Mpa steam pressure. Meanwhile, steam temperature is symmetrical, having high-working efficiency, having acquired product patent certificate.
Specifications
Evaporation 200 KG/H
Steam pressure 0.7 Mpa
Designed fuel diesel, gas, liquefied gas
Steam temperature 170 Degree celsius
Gas consumption 17m3/h(natural gas)
14 m3/h(liquefied gas)
14KG/h(diesel)
Voltage 380 V
Water tank volume 49L
Water pressure 1.05 Mpa
Waste outlet diameter DN40
Steam outlet diameter DN20
Smoke outlet diameter 159mm
Weight 850 KG
Dimension 1100X1100X2300 mm
advantages
1.High energy-saving efficiency
The gas steam generator adopts high-quality burner, designed with vertical 2 return-trip structure, the burning level is higher with over 90% thermal efficiency .
2. High steam capacity
The gas powered steam generator can output steam in 10 minutes and evaporates 300kg/h.
3. Easy to operate
The gas powered steam generator with steam capacity 300kg/h are smart fully automatic operated with accurate computerized circuit board.All functions are dispalyed on the control panel, the working process like steam temperature and pressure adjustable and controllable.
4. Highly safe
Safer than ever with 6 protection systems: pressure regulator system, Overpressure automatic protection, water lack protection, dry-fire protection, anti-explosion system.
5.With national patent certificate
The gas steam boiler is patented product with China patent certificate, guaranting the quality and cost performance, always environment-friendly with few noise and no smog.



0.7mpa Fire Tube High Efficiency Gas Steam Boiler Generator energy saving


After sales service
1.During the 1 year warranty time, the steam generator could be renewed if suffers bugs not by man-made intentional way. You can enjoy free maintenance service from us.
2. out of the 1 year warranty time, the steam generator maintenance service will be charged.
Company Introduction
Dongguan Zhengqi'an technology company is a famous manufacturer that produce electrical automatic steam generator, steam boiler ,steam cleaning machine , smart steam ironing machine.
Established for 10 years , we owned marvelous reputation in the steam generator industry. Our clients are around the world, from Ameria continent to Europe countries.For longtime successful cooperation, our clients esteem us with high compliment.
Dongguan Zhengqi'an technology company keeps high quality rigorously all the time. Every procedure of the pruct is under strict inspection and advanced equipment. So our steam generator gained leading edge and great reputation for long time.
Welcom to visit our factory ! We are honored to cooperate with you all the time .


0.7mpa Fire Tube High Efficiency Gas Steam Boiler Generator energy saving
